Szczegóły Produktu:
|
| nazwisko: | ISR4451 X K9 | Model: | Pamięć Cisco ISR 4451 4GE 3NIM 2SM 8G FLASH 4G DRAM |
|---|---|---|---|
| Zagregowana przepustowość: | 1 Gb/s do 2 Gb/s | Wysokość regału: | 2 RU |
| Gwarancja: | 1 rok | Transport morski: | DHL i FedEx |
| Wbudowane gniazdo ISC: | 1 | Porty oparte na SFP: | 4 |
| Opcje zasilania: | vInternal: AC, DC (mapa drogowa) i PoE | Wypłata: | TT/Paypal |
| Podkreślić: | 4 porty SFP ISR4451,4 porty WAN i LAN ISR4451,Przepustowość systemu 1 do 2G ISR4451 |
||
Cisco 4451 Integrated Services Router, named as ISR4451-X, which supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.
Figure 1 shows the appearance of Cisco ISR4451-X/K9.
Table 1 shows the Quick Specs.
| Product Code | Cisco ISR4451-X/K9 |
| Aggregate Throughput | 1 Gbps to 2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module (SM-X) slot | 2 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| DDRM (data plane) | 2 GB (default) / 2 GB (maximum) |
| DDRM (control/services plane) | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 8 GB (default) / 32 GB (maximum) |
| Power-supply options | Internal: AC, DC (roadmap) and PoE |
| Rack height | 2 RU |
| Dimensions (H x W x D) | 88.9 x 438.15 x 469.9 mm |

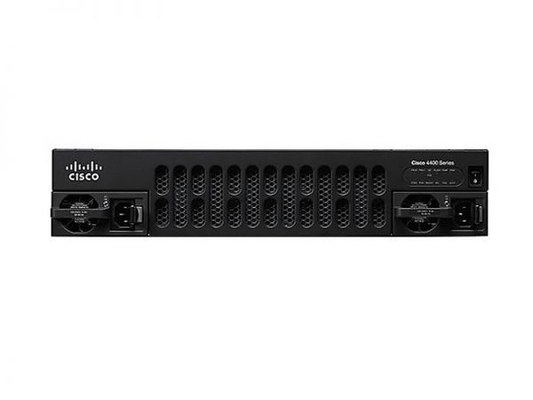

Figure 2 shows the front panel of Cisco ISR4451-X/K9.
Note:
| ① | AC power supply unit (PSU0) | ④ | Router power On/Off switch |
| ② | Router fan tray | ⑤ | LEDs |
| ③ | AC power supply unit (PSU1) | ||
·Router fan tray is hidden behind removable bezel.
·LEDs include 12 indicators.
