474750A (AEQE) A Component Of A Base Station For Mobile Networks

474750A (AEQE) A Component Of A Base Station For Mobile Networks
474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks 474750A (AEQE) A Component Of A Base Station For Mobile Networks

Duży Obraz :  474750A (AEQE) A Component Of A Base Station For Mobile Networks

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: Nokia
Orzecznictwo: CE
Numer modelu: 472181A FSMF
Dokument: LONRISE EQUIPMENT Company ...le.pdf
Zapłata:
Minimalne zamówienie: 1 szt
Czas dostawy: 1-3 dni
Zasady płatności: T/T, Western Union

474750A (AEQE) A Component Of A Base Station For Mobile Networks

Opis

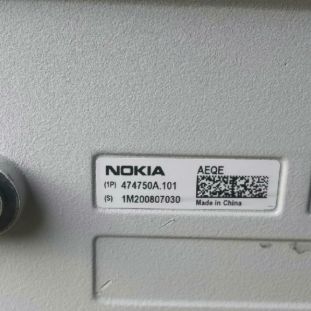

Marka: Nokii Model: 474750A (AEQE)
Stan: Używany Gwarancja: 3 miesiące
Czas realizacji: 1-3 dni Czas dostawy: 3-5 dni
Stosowanie: Stacja bazowa Typ: RRU
Podkreślić:

optical transceiver module for mobile networks

,

base station component optical transceiver

,

AEQE optical transceiver module

Overview

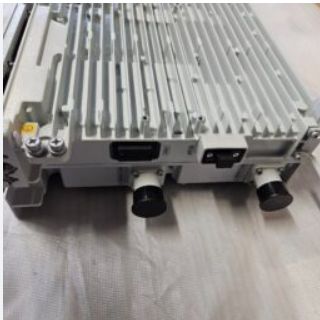

The 474750A (AEQE) is a component of a base station for mobile networks. It features 64 transmit/receive (T/R) paths with support for 64T64R MIMO, 256QAM modulation, and 200 MHz instantaneous bandwidth. The unit supports digital beamforming, a 32TRX + 32TRX split mode, and connects to the baseband unit via eCPRI over SFP28 ports.

474750A (AEQE) A Component Of A Base Station For Mobile Networks 0474750A (AEQE) A Component Of A Base Station For Mobile Networks 1

Key specifications
  • Model: 474750A (AEQE)
  • Product: Nokia AirScale MAA 64T64R 192AE n78 200W (Massive Antenna Array)
  • Technology: 5G NR
  • Frequency Band: n78 (
    3480 38003480 space 3800
    3480 3800
    MHz)
  • Bandwidth: 200 MHz (instantaneous), 100 MHz (occupied)
  • Output Power: 200W total, 3.125W per TRX (software settable)
  • Transmitter/Receiver Paths: 64T / 64R
  • MIMO Streams: 16
  • Modulation: Up to 256QAM
  • Beamforming: Digital, 64T64R
  • Connectivity: Dual SFP28 (10/25GE eCPRI) for baseband connection
  • Dimensions:
    750*450*240750 cross 450 cross 240
    750*450*240
    mm (H x W x D)
  • Weight: 45 kg (without bracket)
  • Supply Voltage:
    -40.5negative 40.5
    −40.5
    to
    -57negative 57
    −57
    V DC
  • Ingress Protection: IP65 / Class II, 20 kA
Features
  • Supports split mode with 32TRX + 32TRX capability
  • Supports digital beamforming for multi-user MIMO
  • Compliance with 3GPP/CEPT/Ficora/ETSI NR standards
  • Includes other ports for RF monitoring (SMA), control (AISG), alarms (MDR26), and LMI/HDMI
  • Natural convection cooling

474750A (AEQE) A Component Of A Base Station For Mobile Networks 6
